YaM Mechanical Jar

Show video

Application

YaM mechanical jar delivers impact forces (both upward & downward) during stuck-related incidents, caused by balling or sticking of drill, casing, tubing pipes, BHA components, stabilizers, mills.

Design

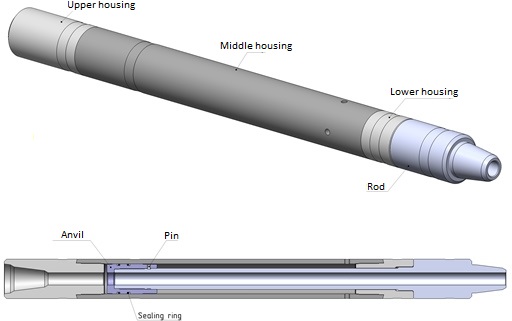

The jar consists of a threefold housing, a rod, an anvil, a retaining screw, sealings.
Three parts of housing are interconnected with a special thread. The jar has box thread at the top.
The jar is available in left- and right-hand configurations.
To fascilitate operation of the fishing tool, it is recommended to install the jar in BHA.

Images and Dimensions

Technical data

To cart	Code	Watercourse OD, in	Total length, ft	Free stroke of stock, in	D, in	Tensile yield, lbf	Connection, API	Average number of impacts	Weight, lb
	YAM-95	1-1/4	4.29	1.64	3.74	258 530	2-7/8 Reg	800	110.2
	YAM-103	1-1/4	4.29	1.64	4.05	258 530	2-7/8 Reg	800	136.6
	YAM-122	1-1/2	4.29	1.64	4.8	404 660	3-1/2 Reg	800	189.6
