KSU Wireline Spiral Spear

Show video

Application

KSU spiral wireline spear retrieves well-logging wireline, electric cable, wire-rope, slickline during remediation in a cased hole.

Design

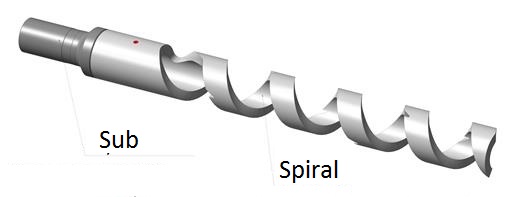

The spear is a single-piece helical grapple in the form of a corkscrew. The corkscrew is integral with the sub, having thread for connecting to the pipe string at the top. The corkscrew is made of heat-treated alloy steel. Each turn of the spiral has a catch, that precludes slip-off of the wireline during retrieval.

Images and Dimensions

Technical data

To cart	Code	OD, in	ID, in	Total length, ft	Length of working part, ft	Connection, API	Load capacity, lbf	Weight, lb
	KSU-122	4-13/16	2-3/4	3.92	3.08	2-7/8 IF	33 720	78.26

You can specify the size of an item on the checkout page.
